75 x 2000mm(3"x79") Inverter Variable Speed Belt Grinder
•Ideal stock and burr removal belt grinder.
•Inverter variable speed for different kind of material: Turns a standard 75x2000mm(3"x79") abrasive belt at a speeds from 1500~3000rpm. Smoothing over burrs on different material such as  wood, metal, chamfering edges for welding, and finishing castings, among other uses.
•4HP motor with inverter runs on 220V single phase power. That gives sufficient torque. The Speed won't be reduced under a full load.
•Openable top guard provides a large flat grinding surface. It's ideal for castings andlarger workpiece.
•Enhanced fully welded steel body reduces vibration and increases rigidity and accuracy.
•A triangular steel base lets you pivot the unit to the desired angle for best operation.

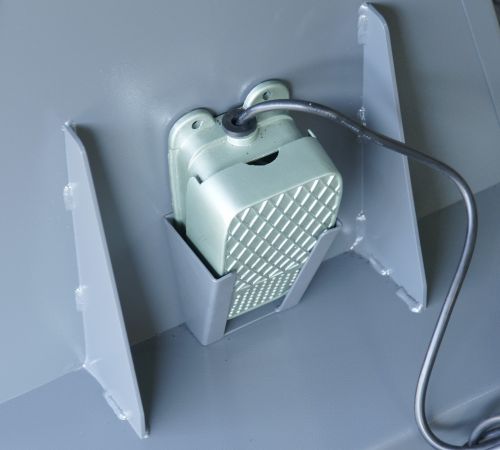

•Foot operated pedal for emergency stop. One step over to stop the power within 3 seconds. As the operator is grinding a workpiece with both hands. It has no hand to press the stop button. For safety concern, the operator can use one of the feet to stop the grinder.
•Single speed model available (3000rpm).
  • LBG-75
  • LBG-75
  • LBG-75
  • LBG-75
Product Specification
Model   LBG-75  LBG-75-1
Belt Size   75x2000  75-2000
Motor  4HP  4HP
RPM  1500-3000  3000
Belt Speed (Meter per second)  15-30  30
Contact Wheel  Ø200x75  Ø200x75
Top Grinding Surface  540  540
Weight  85kg  85kg
Dimensions  1000x500x1000  1000x500x1000
