DP-925G-M

  • DP-925G-M

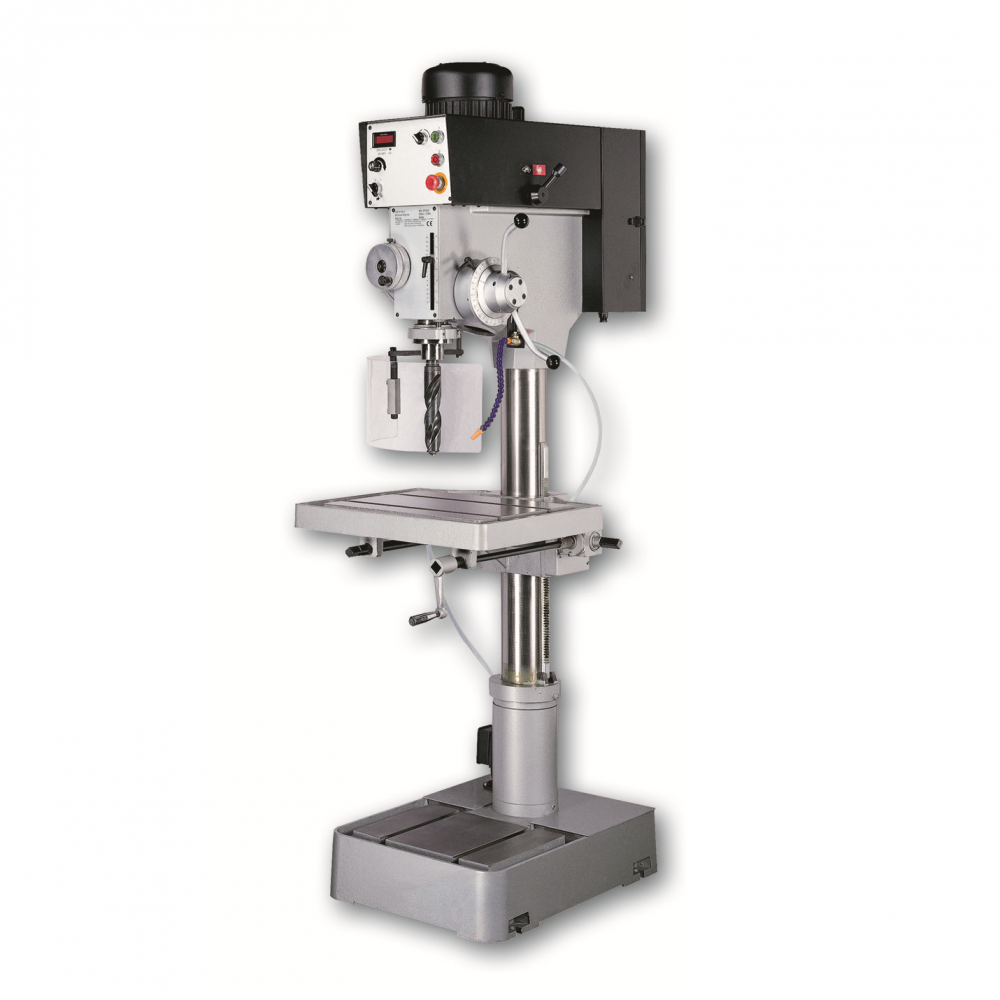

Gear Driven Inverter Variable Speed Drill Press

The DP-925GAD-M is a gear driven heavy duty variable speed drill press. This premium drill press equips standard with MT#4 spindle taper, power feed and auto reversing tap. Standard drilling capacity is up to 40mm (1-1/2") for mild steel. The user friendly control interface comes with a speed potentiometer and digital read out for displaying actual quill RPM. The inverter variable speed allows users to drill and tap various steels at the proper speed, which extends tooling life and avoids unnecessary energy lost.
  • DP-925G-M
Product Description

When drilling at the exact speed, the tooling life can last for longer life than the regular pulley driven drills. The variable speed adjustments can be done freely within the range by a speed potentiometer knob. Wide casting column provides strong support to the entire machine and reduces flexing as full 1-/2" capacity drilling. The rigid base has built in powerful coolant system that provides sufficient spray at the quill. Both the base and the work table are made of premium casting iron that enhances the stability when drilling full capacity; their surfaces have the wide T-slot which helps securing vises, tooling or workpieces.
Product Feature

  • M-type 40mm (1-1/2").
  • Inverter variable speed gear driven.
  • 3-speed power down feed.
  • Auto reverse tapping.
  • MT#4 spindle taper.
  • Digital rpm readout.
  • High precision T-slot worktable.
  • Integrated coolant system.
  • Single phase (220V) available.

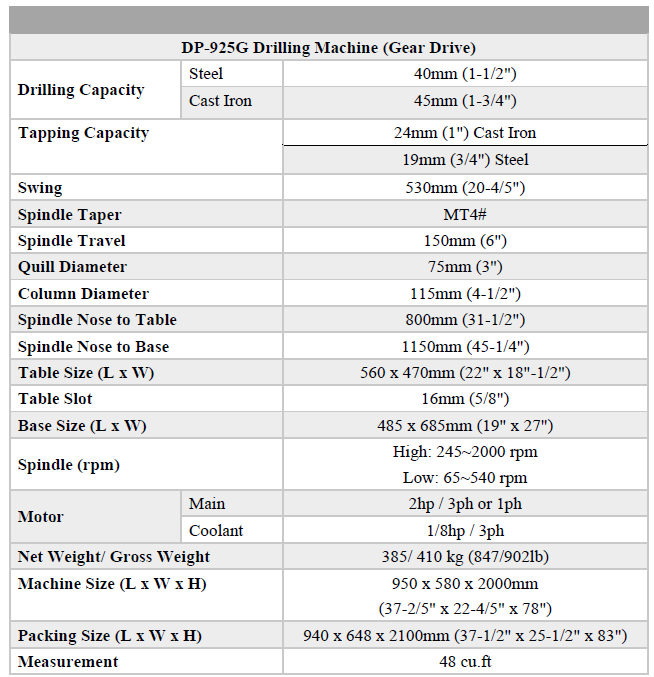

Product Specification
