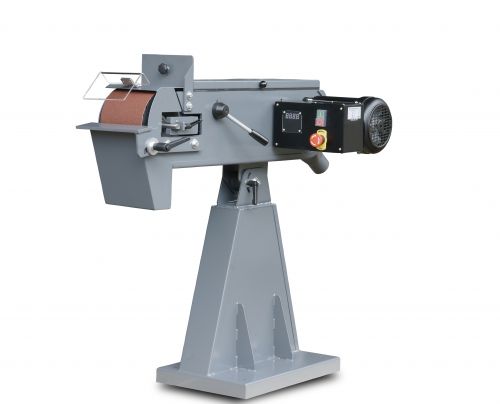

LBG-150 Belt Grinder

  • An Industrial Level Heavy Duty Belt Grinder.
  • Designed and Built for Tough Grinding.
  • Different Speed of Different Kind of Material.
  • Ideal Stock and Burr Removal.
  • Inverter Driven
  • LBG-150 Belt Grinder
  • LBG-150 Belt Grinder
  • LBG-150 Belt Grinder
  • LBG-150 Belt Grinder
  • LBG-150 Belt Grinder
Product Feature
  • Inverter variabl speed for different kind of material: Turns a standard 150x2000mm (6"x79") abrasive belt at speeds from 1500rpm~3000rpm. Smoothing over burrs on different material such as wood, metal, chanfering edges for welding, and finishing castings, among other uses.
  • 5HP motor with inverter runs on 220V single phase power. That gives sufficient torque. The speed won't be reduced under a full load.

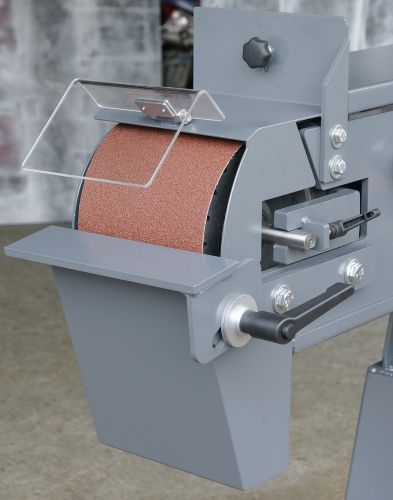

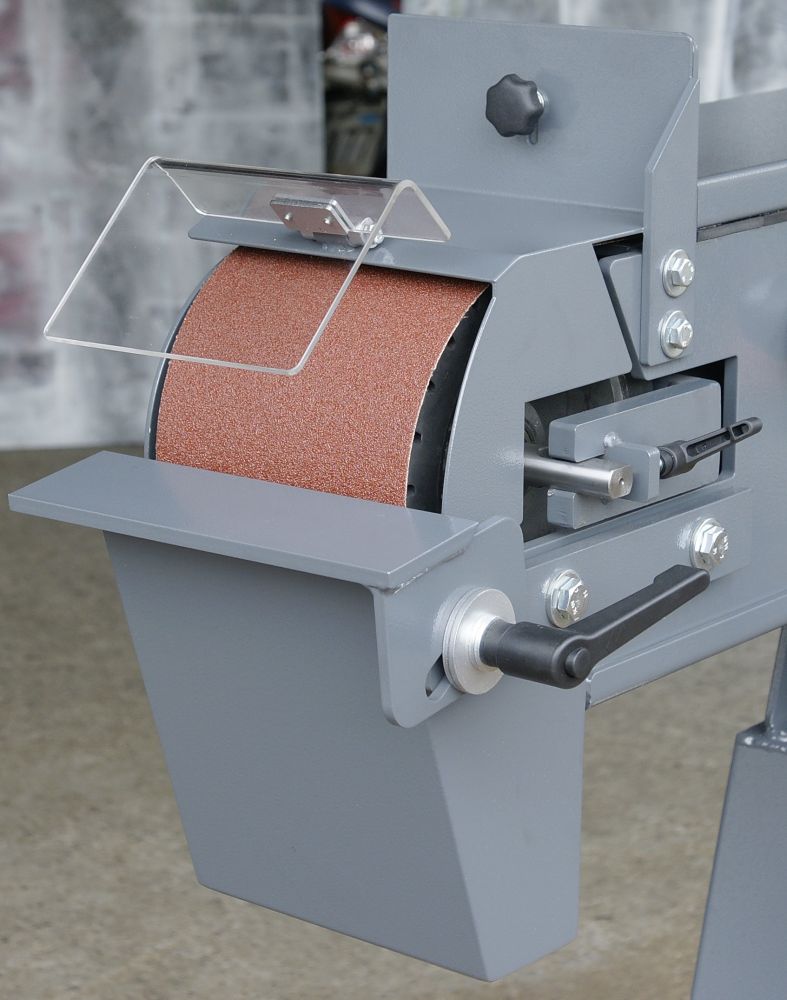

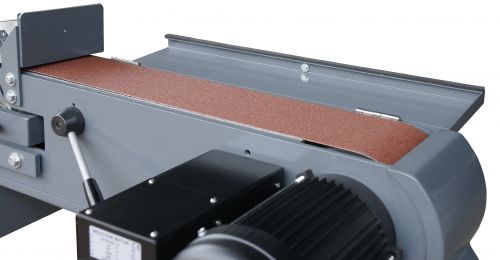

  • Operable top guard provides a large flat grinding surface. It's ideal for casting and larger workpiece.
  • Enhanced fully welded steel body reduces vibration and increases rigidity and accuracy.

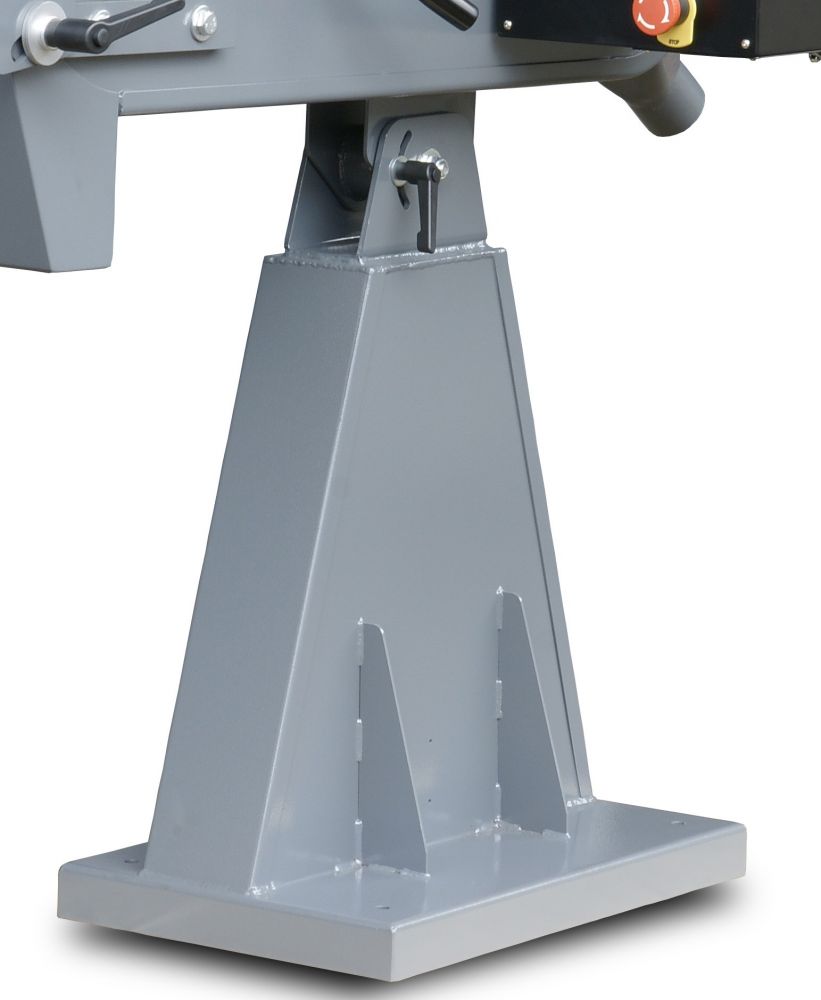

  • A triangular steel base lets you pivot the unit to the desired angle for tough operation.
  • Foot operated pedal for emergency stop (Option). One step over to stop the power within 3 seconds. As the operator is grinding a larger workpiece by both hands. It has no hand to press the stop button. For safety concern, the operator can use one of the feet to stop the grinder.
  • Single speed model available (3000rpm).
Product Specification
Model  LBG-150  LBG-150-1
Belt Size  150x2000  150x2000
Motor  5HP  5HP
Speed (RPM)  1500x3000  3000
 Belt Speed (Meter per second)  15-30  30
 Contact Wheel  Ø200x150  Ø200x150
 Top Grinding Surface  540  540
 Weight  100  100
 Dimensions  1100x550x1055  1100x550x1055
