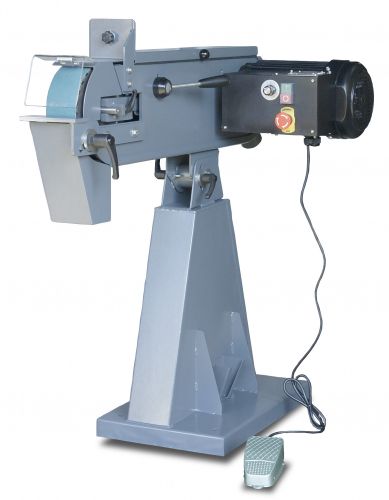

LBG-75 Belt Grinder

  • An Industrial Level Heavy Duty Belt Grinder.
  • Designed and Built for Tough Grinding.
  • Different Speed for Different Kind of Material.
  • Ideal Stock and Burr Removal.
  • Inverter Driven.
  • LBG-75 Belt Grinder
  • LBG-75 Belt Grinder
  • LBG-75 Belt Grinder
  • LBG-75 Belt Grinder
Product Feature
  • Inverter variable speed for different kind of material: Turns a standard 75x2000mm (3"x79") abrasive belt at speeds from 1500rpm~3000rpm. Smoothing over burrs on different material such as wood, metal, chamfering edges for welding, and finishing castings, among other uses.
  • 4HP motor with inverter runs on 220V single phase power. That give sufficient torque. The speed won'tbe reduced under a full load.
  • Openable top guard provides a large flat grinding surfce. It's ideal for casting and larger workpiece.
  • Enhanced fully welded steel body reduces viration and increases rigidity and accuracy.

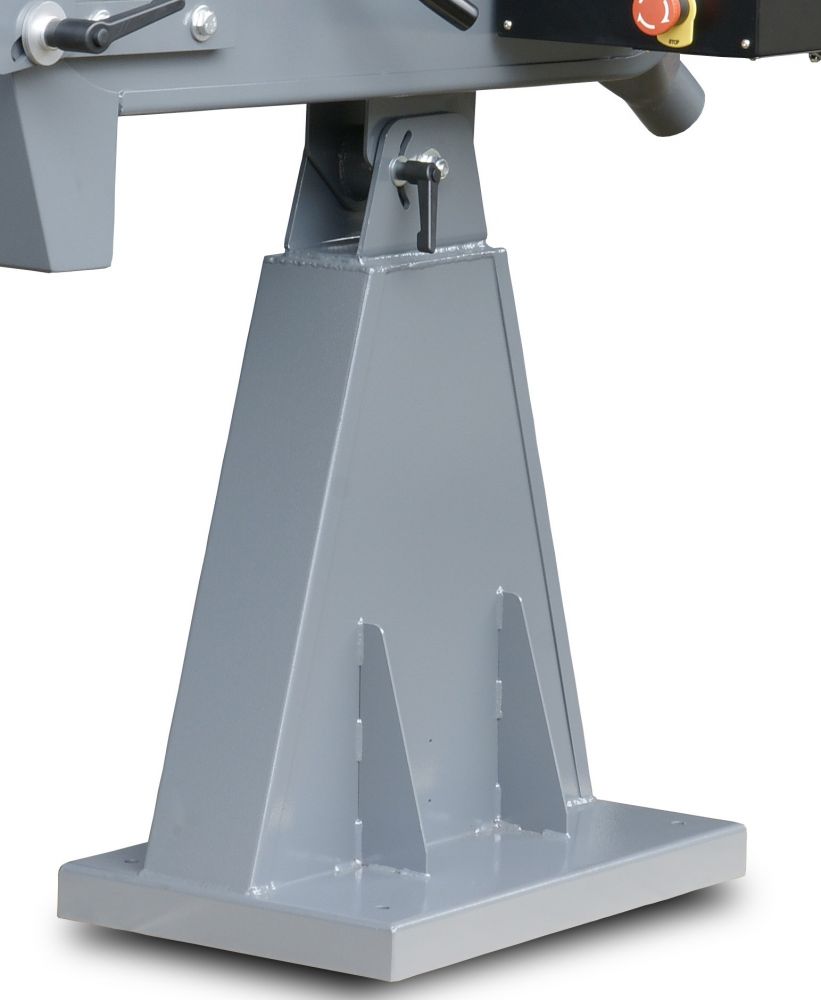

  • A triangular steel base lets you pivot the unit to the desired angle for tough operation.
  • Foot operated pedal for emergency stop (Option). One step over to stop the power within 3 seconds. As the operator is grinding a larger workpiece by both hands. It has no hand to press the stop button. For safety concern, the operator can use one of the feet to stop the grinder.
  • Single speed model available (3000rpm).
Product Specification
Model  LBG-75  LBG-75-1
Belt Size   75x2000  75x2000
Motor  4HP  4HP
Speed (RPM)  1500-3000  3000
Belt Speed (Meter per second)  15-30  30
Contact Wheel  Ø200x75  Ø200x75
Top Grinding Surface  540  540
Weight  85kg  85kg
Dimensions  1000x500x1000  1000x500x1000
